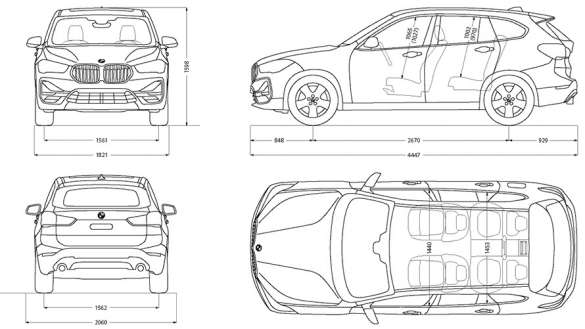

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW X1.
BMW X1: TECHNICAL DATA.
Unladen weight EU in kg
1,480-1,475 [1,510-1,505]
Max. permissible weight in kg
2,000 [2,025]
Permitted load in kg
595-600 [590-595]
Permitted axle load front/rear in kg
990-995/1,035 [1,020/1,035]
Luggage capacity min. (seats up or roof down) in l
505 [505]
Luggage capacity max. (seats down or roof up) in l
1,550 [1,550]
Trailer load (unbraked) in kg
740-735 [750]
Trailer load 8% (braked) in kg
1,400-1,700 [1,400-1,700]
Trailer load 12% (braked) in kg
1,400-1,700 [1,400-1,700]
Cylinders/valves
3/4
Capacity in ccm
1,499
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
100-103 (136-140)/4,500-6,500
Engine torque (Nm) at 1/min
220/ 1,480-4,200
Compression ratio : 1
11.0
Top speed in km/h
203 [201]
Acceleration 0–100 km/h in s
9.6 [9.6]
Top speed fully electric in km/h
-
Urban in l/100 km
7.6 [7.3]
Extra–urban in l/100 km
5.5 [5.5]
Combined in l/100 km
6.3 [6.2]
CO2 combined emissions in g/km
144 [141]
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
51
Tyre dimensions front
225/55 R17 97 W
Tyre dimensions rear
225/55 R17 97 W
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
51
Electric range in km
-
Growth capacity of lithium–ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined power kW (hp)
-
Combined torque Nm
-
